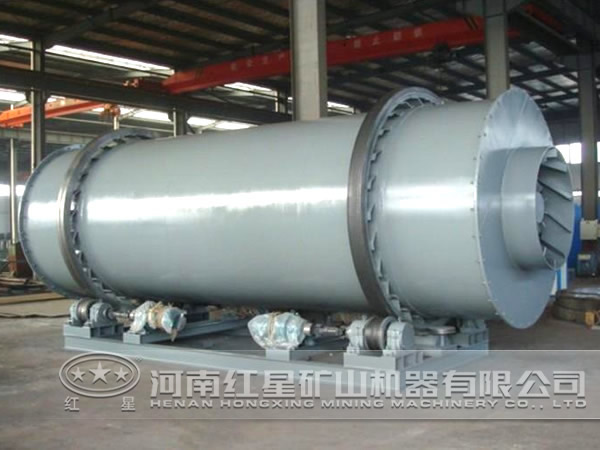

套筒烘干机也叫做节能套筒烘干机，与其他烘干机相比更具有一定的优势，具体是在原有高湿物料干燥机的基础上进行改进的一种节能高效干燥设备。经过用户的使用和科研人员的研制，目前已经达到国际先进水平，不仅能处理粘性较低的高水份物料，还能处理粘性粘性较大的高水分物料， 了一机多用的原则。
该套筒烘干机适用于含水小于85%的各类糟渣物料的干燥，如啤酒糟、酒精糟、果渣、药渣、酱糟、糖渣、淀粉渣、禽畜粪便、屠宰下脚料等，对于开辟饲料资源，降低饲养成本，减少环境污染具有良好 。
It is improved on the basis of the traditional high humidity material drying machine to be an energy-saving dryer with high efficiency. Now it has reached the advanced international level after continuous improvement which can not only process the high humidity materials with both weak and strong stickiness.
It is used to dry all kinds of slag materials with humidity less than 85% like brewer’s grain, alcohol grain, fruit grain, medicine slag, sauce grain, sugar grain, starch slag, animal faeces and butcher leftovers.
1、无漏风现象， 了密封难点，2小时内就可安装完毕。
2、可根据用户要求轻松调控所要的终水分指标。
3、出料温度<50度，可直接进料库，无需进冷却棚冷却。
4、外筒体温度60度，废气温度<100度，除尘设备布袋适用时间长2倍以上，出来都是水蒸气。
5、煤耗是单筒烘干机的1/3，节电40%。吨标煤耗<9公斤，小型号烘干机年节煤为50-100 ，大型号烘干机年节煤100-200 。
6、设备投资是国外进口产品的1/6，采用合金钢板制造，比普通钢板耐磨3-4倍。
物料由供料装置进入节能套筒烘干机回转滚筒的内层, 顺流烘干,物料在内层的抄板下不断抄起、散落呈螺旋行进式 热交换，物料移动至内层的另一端进入中层，进行逆流烘干，物料在中层不断地被反复扬进，呈进两步退一步的行进方式，物料在中层既充分吸收内层滚筒散发的热量，又吸收中层滚筒的热量，同时又延长了干燥时间，物料在此达到 干燥状态。物料行至中层另一端而落入外层，物料在外层滚筒内呈矩形多回路方式行进，达到干燥 的物料在热风作用下快速行进排出滚筒，没有达到干燥 的湿物料因自重而不能快速行进，物料在此矩形抄板内进行充分干燥，节能套筒烘干机由此完成干燥目的。
Materials enter the inner side of the drum through the feeding device to realize current flow drying process. They get raised and scattered under the shoveling plate in a spiral advancing way to exchange heat. Then the materials enter the middle layer of the inner wall through the other end to realize counter current drying process. They are lifted in over and over in the middle layer which advance in two-steps forward and one-step back way. They absorb heat from both inner drum and middle drum, which extend the drying time and realize the best drying condition. Finally, materials fall into the external layer of the drum from the other end of the middle layer, processing in a rectangle multi-loop way. The dried materials move quickly out of the drum under the hot air, while the wet ones remain because of their own weight. Materials are dried completely inside the rectangle shoveling plate and then cooled by the single drum cooler, thus finishing the whole drying process.
河南红星矿山机器有限公司位于河南省郑州市。是一家大型套筒烘干机厂家，生产的套筒烘干机具有布局合理、安装方便等优点。套筒烘干机价格合理，欢迎新老客户来厂参观选购。
套筒烘干机厂家地址：中国-河南-郑州-高新 产业开发区-檀香路-8号。
